Wire Rope Blocks >> Horizontal Directional Blocks
Product Name Horizontal Directional Blocks
Product Material Steel

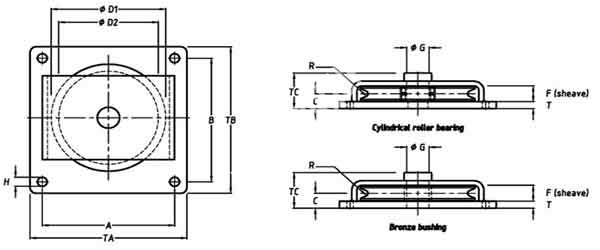

Product No. Wll Wire size Bearing Dimensions (mm) Weight
(t) up to (mm) D1 D2 A B C F G H T R TA TB (kg)
Bronze Bushing
MHAE074-HD001 1 10 Bronze 125 105 180 150 22.5 27 22 9 8 5.5 200 170 54
MHAE074-HD002 2 12 Bronze 150 120 220 190 31 40 30 11 10 6.5 250 220 72
MHAE074-HD003 3 14 Bronze 200 165 290 240 33 40 30 13.5 12 7.5 320 270 76
MHAE074-HD004 4 18 Bronze 250 210 360 310 38.5 45 35 17.5 15 9.5 400 350 86
MHAE074-HD005 6 20 Bronze 300 255 400 360 46 50 40 22 20 11 450 410 99
MHAE074-HD006 8 22 Bronze 350 305 460 420 46 50 45 26 20 12 520 480 99
MHAE074-HD007 10 24 Bronze 400 345 530 480 51 60 50 32 20 13 600 550 113
Ball or Cylindrical Roller bearing
MHAE074-HD001 1 10 Bronze 125 105 180 150 22.5 27 22 9 8 5.5 200 170 54
MHAE074-HD002 2 12 Bronze 150 120 220 190 31 40 30 11 10 6.5 250 220 72
MHAE074-HD003 3 14 Bronze 200 165 290 240 33 40 30 13.5 12 7.5 320 270 76
MHAE074-HD004 4 18 Bronze 250 210 360 310 38.5 45 35 17.5 15 9.5 400 350 86
MHAE074-HD005 6 20 Bronze 300 255 400 360 46 50 40 22 20 11 450 410 99
MHAE074-HD006 8 22 Bronze 350 305 460 420 46 50 45 26 20 12 520 480 99
MHAE074-HD007 10 24 Bronze 400 345 530 480 51 60 50 32 20 13 600 550 113

Note:
1. WLL= Working Load Limit
2. No test certificate possible.
3. Groove in sheave may be adjusted to other Wire rope diameters.
4. Minimum Ultimate Strength = 4 x WLL.
