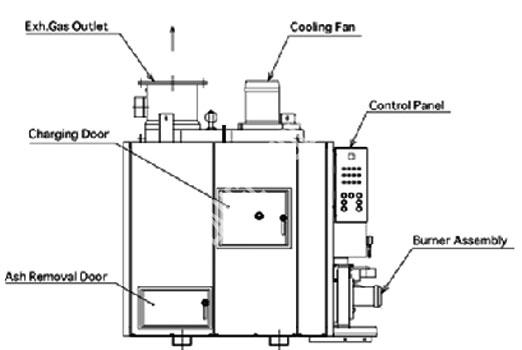

Marine Solid Waste Management System >> Marine Incinerator >> Dual-Function Incinerator >> Sludge Oil and Solid Waste TypeMarine Incinerator
 |
 |
||
| Product Name | Marine Incinerator | ||
| Waste Type | Solid Waste & Sludge Oil | ||
| Mounting Type | Vertically | ||
| Product No. | MEPE402-SS012 | MEPE402-SS013 | MEPE402-SS014 |
| 1. General Specifications | |||
| Max.Capacity(KW) | 301 | 417 | 650 |
| Waste Oil Max.Capacity(KW) | 233 | 349 | 582 |
| Solid Waste Max.Capacity(KW) | 68(58000)<20>(20) | 68(58000)<20>(20) | 68(58000)<20>(20) |
| Electric Power Source | 440V(220V) 60HZ | 440V(220V) 60HZ | 440V(220V) 60HZ |
| Total Electrical Consumption(KW) | 8 | 11 | 15.8 |
| Control | Automatic Control | Automatic Control | Automatic Control |
| Mass(KG) | 3200 | 3200 | 3470 |
| 2 Waste Oil Burner | |||
| Type | Air Atomizing Type | Air Atomizing Type | Air Atomizing Type |
| Waste Oil Pump | Screw Type | Screw Type | Screw Type |
| Electric Power(KW) | 0.2 | 0.2 | 0.2 |
| Max.Flow Rate( L/H) | 65 | 65 | 65 |
| Pressure(Mpa) | 1 | 1 | 1 |
| 3 Pilot Burner | |||
| Type | Pressure Atomizing Type | Pressure Atomizing Type | Pressure Atomizing Type |
| Pilot Oil Pump Type | Solenoid pum | Solenoid pum | Solenoid pum |
| Fuel Consumption(KG/H) | 6.9 | 6.9 | 6.9 |
| Ignition Type | High-voltage spark | High-voltage spark | High-voltage spark |
| 4 Burner Fan | |||
| Type | Turbo Fan | Turbo Fan | Turbo Fan |
| Flow Rate(m3/min) | 7.5 | 11.4 | 20 |
| Pressure mmAq | 120 | 120 | 120 |
| Electric Capacity(KW) | 0.75 | 1.5 | 2.2 |
| 5. Cooling Fan | |||
| Type | Turbo Fan | Turbo Fan | Turbo Fan |
| Flow Rate(m3/min) | 50 | 70 | 125 |
| Pressure(Kpa) | 1.18 | 1.18 | 1.18 |
| Electric Capacity(KW) | 5.5 | 7.5 | 11 |
| 6. Dimensions | |||
| Width W Max.(mm) | 2075 | 2110 | 2345 |
| Depth D Max.(mm) | 1275 | 1275 | 1310 |
| Hight H Max.(mm) | 2165 | 2165 | 2400 |
| Exhaust Outlet Diameter JIS A | 350 | 400 | 500 |
