Wire Rope Blocks >> Pulley Block With Hook
Product Name Pulley Block With Hook
Product Material Steel

Technical data

Product No. Capacity
kg		 Rope diameter
mm		 Weight
kg
MHAE075-PW001 1000 7 3.3
MHAE075-PW002 2000 13 8.9
MHAE075-PW003 3200 15 15.5
MHAE075-PW004 6400 18 26.5

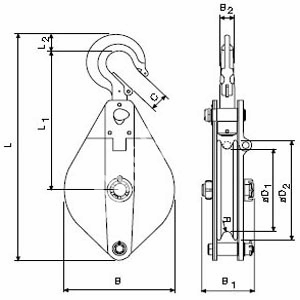

Dimensions

Product No. MHAE051-PB001 MHAE051-PB002 MHAE051-PB003 MHAE051-PB004
Model Pulley Block 1000 Pulley Block 2000 Pulley Block 3200 Pulley Block 6400
B, mm 118 199 230 270
B1, mm 76 9 108 116
B2, mm 17 4 28 35
C, mm 23 7 31 42
D1, mm 85 150 180 210
D2, mm 105 190 220 260
L, mm 305 4 5 496 655
L1, mm 200 63 295 375
L2 , mm 23 30 40 47
R, mm 4 7 9 10

Features
1. Swinging the Hook in the direction of pull securely locks the Pulley Block.
2. The high quality cast steel sheaves have machined grooves and are fitted With Paraglide bushes.
