Wire Rope Sheaves >> Sheaves With Bronze Bushing
Product Name Sheaves With Bronze Bushing
Product Material Steel
Product No. Wire
(mm)		 Dimensions (mm) Bearing ?Material Weight
(kg)

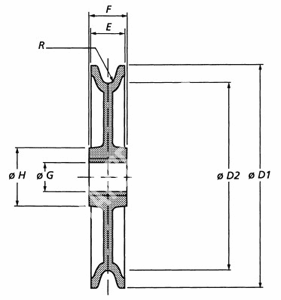

D1 D2 E F G H R
MHAE081-SW001 8 100 80 18 20 15 30 4.5 Bronze GGG-60 0.6
MHAE081-SW002 10 125 105 23 27 22 55 5.5 Bronze GGG-60 1.5
MHAE081-SW003 12 150 120 36 40 30 80 6.5 Bronze GGG-60 3
MHAE081-SW004 12 150 120 36 40 30 80 6.5 Bronze GGG-70 3
MHAE081-SW005 14 200 165 36 40 30 80 7.5 Bronze GGG-60 4.5
MHAE081-SW006 18 250 210 40 45 35 90 9.5 Bronze GGG-60 8
MHAE081-SW007 20 300 255 45 50 40 100 11 Bronze GGG-70 12
MHAE081-SW008 22 350 305 45 50 45 115 12 Bronze GGG-70 17
MHAE081-SW009 24 400 345 55 60 50 130 13 Bronze GGG-70 24
MHAE081-SW010 28 450 390 60 70 55 140 15 Bronze GGG-70 36
MHAE081-SW011 30 500 430 70 80 60 150 16 Bronze GGG-70 44
MHAE081-SW012 34 550 480 70 80 70 170 18.5 Bronze GGG-70 55
MHAE081-SW013 36 600 520 85 105 80 190 19.5 Bronze GGG-70 80
MHAE081-SW014 38 665 560 100 110 100 210 20.5 Bronze GGG-70 110
MHAE081-SW015 40 710 630 85 110 120 260 21.5 Bronze GGG-70 125
MHAE081-SW016 44 810 710 98 130 150 230 23.5 Bronze GGG-60 190
MHAE081-SW017 42 920 800 120 150 150 320 22 Bronze GGG-60 260
MHAE081-SW018 46 1020 890 130 150 160 400 24.5 Bronze GGG-60 340

1. Different shaft sizes possible.
2. Groove may be adjusted to other Wire rope diameters.
