Marine Valves >> BS Marine Valves >> Gate Valves >> BS PN16 Non-Rising Stem Gate ValvePN 16 Non-Rising Stem Gate Valve

Product Name	PN 16 Non-Rising Stem Gate Valve

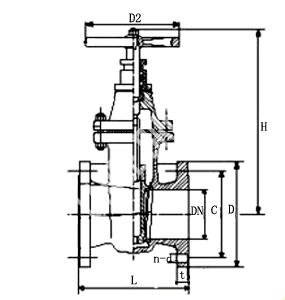

Product No	DN	L									D	C	n-d	t									H	D2
MFVEZZ4-BS01	50	178									165	125	4-19	20									350	180
MFVEZZ4-BS02	65	190									185	145	4-19	20									369	180
MFVEZZ4-BS03	80	203									200	160	8-19	22									409	200
MFVEZZ4-BS04	100	229									220	180	8-19	24									458	200
MFVEZZ4-BS05	125	254									250	210	8-19	26									516	240
MFVEZZ4-BS06	150	267									285	240	8-23	26									570	240
MFVEZZ4-BS07	200	292									340	295	12-23	30									753	320
MFVEZZ4-BS08	250	330									405	355	12-28	32									807	320
MFVEZZ4-BS09	300	356									460	410	12-28	32									940	400
MFVEZZ4-BS10	350	381									520	470	16-28	36									1002	505
MFVEZZ4-BS11	400	406									580	525	16-31	38									1100	556
MFVEZZ4-BS12	450	432									640	585	20-31	40									1210	610
MFVEZZ4-BS13	500	457									715	650	20-34	42									1380	640
MFVEZZ4-BS14	600	508									840	770	20-37	48									1455	640
