Wire Rope Sheaves >> Sheaves With Cylindrical Roller
Product Name Sheaves With Cylindrical Roller
Product Material Steel
Product No. Wire
(mm)		 Dimensions (mm) Bearing ?Material Weight
(kg)

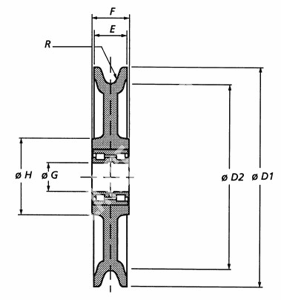

D1 D2 E F G H R
MHAE083-SC001 12 150 120 36 40/34 30 80 6.5 NNF 5006 GGG-60 3
MHAE083-SC002 14 200 165 36 40/34 30 80 7.5 NNF 5006 GGG-60 4.5
MHAE083-SC003 18 250 210 40 45/36 35 90 9.5 NNF 5007 GGG-60 8
MHAE083-SC004 20 300 255 45 50/38 40 100 11 NNF 5008 GGG-70 12
MHAE083-SC005 13 320 280 36 40 50 140 7 NNF 5010 GGG-50 8.5
MHAE083-SC006 13 320 280 38 46 60 140 7 NNF 5012 GGG-50 9.2
MHAE083-SC007 16 320 285 38 46 60 140 8,5 NNF 5012 GGG-50 9.3
MHAE083-SC008 22 350 305 45 50/40 45 115 12 NNF 5009 GGG-70 17
MHAE083-SC009 16 365 320 42 46 65 160 9 NNF 5013 GGG-50 13.3
MHAE083-SC010 24 400 345 55 Apr-60 50 140 13 NNF 5010 GGG-70 24
MHAE083-SC011 16 410 355 42 46 65 160 8.5 NNF 5013 GGG-50 16.3
MHAE083-SC012 17 410 355 42 67 90 160 9 NNF 5018 GGG-50 20.4
MHAE083-SC013 18 420 360 50 60 80 160 9.5 NNF 5016 GGG-50 23.7
MHAE083-SC014 28 450 390 60 70/46 55 140 15 NNF 5011 GGG-70 48
MHAE083-SC015 18 460 400 42 46 65 175 9.5 NNF 5013 GGG-50 22.3
MHAE083-SC016 18 460 400 48 54 70 175 9.5 NNF 5014 GGG-50 21.8
MHAE083-SC017 22 460 400 50 60 80 200 11.5 NNF 5016 GGG-50 22.7
MHAE083-SC018 22 460 400 61 67 90 200 11.5 NNF 5018 GGG-50 23.7
MHAE083-SC019 17 460 410 42 46 65 200 9 NNF 5013 GGG-50 22.3
MHAE083-SC020 17 460 410 61 67 90 200 9 NNF 5018 GGG-50 24.7
MHAE083-SC021 30 500 430 70 80/46 60 150 16 NNF 5012 GGG-70 44
MHAE083-SC022 19 515 450 61 67 90 200 10 NNF 5018 GGG-50 39.7
MHAE083-SC023 20 515 450 61 67 90 200 11.5 NNF 5018 GGG-50 39.7
MHAE083-SC024 19 515 450 70 80 12 270 10 NNF 5024 GGG-50 45

1. Different shaft sizes possible.
2. Groove may be adjusted to other Wire rope diameters.
