Product Name |
Hinged A0 Fire Door (Double) | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Used for bulkheads or combination of bulkhead and ceramic cotton with fireproof requirements | ||||||||||
|
Material |
Steel | ||||||||||
|
Stuffing |
Fireproof material | ||||||||||
|
Option |
Hose-port, A60 fire proof | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

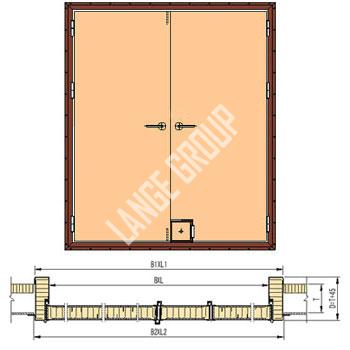

| Specifications | |||||||||||
| Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | Frame Thickness/mm | Weight | ||||||
| B×L | B1×L1 | B2×L2 | D | kg | |||||||
| MOUE010-AB001 | 1100×1700 | 1194×1794 | 1200×1800 | T+45 | 196 | ||||||
| MOUE010-AB002 | 1200×1700 | 1294×1794 | 1300×1800 | 207 | |||||||
| MOUE010-AB003 | 1300×1700 | 1394×1794 | 1400×1800 | 218 | |||||||
| MOUE010-AB004 | 1400×1700 | 1494×1794 | 1500×1800 | 228 | |||||||
| MOUE010-AB005 | 1100×1750 | 1194×1844 | 1200×1850 | 201 | |||||||
| MOUE010-AB006 | 1200×1750 | 1294×1844 | 1300×1850 | 212 | |||||||
| MOUE010-AB007 | 1300×1750 | 1394×1844 | 1400×1850 | 223 | |||||||
| Sizes and colors will customize according to your requirements | |||||||||||
