Product Name |
Watertight Gastight A0 Fire Door | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Light and easy operation | |||||||||||
|
Available in natural finish, primed or coated in accordance with client request | |||||||||||
|
Application |
Cannot be used on a watertight bulkhead where watertight integrity is to be maintained from both sides of the bulkhead | ||||||||||
|
Material |
Steel | ||||||||||
|
Max Pressure |
0.2MPa | ||||||||||
|
Max Door Leaf Size |
2014mmx1014mm | ||||||||||
|
Available Certificate |
GL, DNV, CCS, BV, ABS, LR, KR, RS, etc | ||||||||||

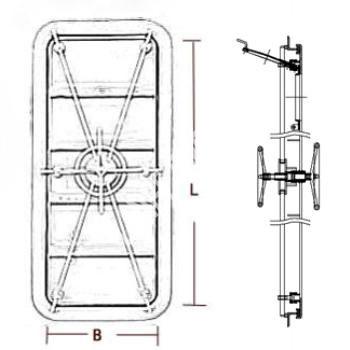

| Specifications | |||||||||||
| Product No. | Nominal Size | Cutout in Steel Wall | External Size | Leaf Thickness | |||||||
| B×L×R | B1×L1×R1 | B2×L2×R2 | T | ||||||||
| MOUE010-AD001 | 600×1500×R100 | 700×1600×R150 | 800×1700×R200 | 8 | |||||||
| MOUE010-AD002 | 600×1600×R100 | 700×1700×R150 | 800×1800×R200 | ||||||||
| MOUE010-AD003 | 700×1500×R100 | 800×1600×R150 | 900×1700×R200 | ||||||||
| MOUE010-AD004 | 700×1600×R100 | 800×1700×R150 | 900×1800×R200 | ||||||||
| MOUE010-AD005 | 700×1700×R100 | 800×1800×R150 | 900×1900×R200 | ||||||||
| MOUE010-AD006 | 800×1500×R100 | 900×1600×R150 | 1000×1700×R200 | ||||||||
| MOUE010-AD007 | 800×1600×R100 | 900×1700×R150 | 1000×1800×R200 | ||||||||
| MOUE010-AD008 | 800×1700×R100 | 900×1800×R150 | 1000×1900×R200 | ||||||||
| Sizes and colors will customize according to your requirements | |||||||||||
