Wire Rope Sheaves >> Sheaves With Cylindrical Roller
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Sheaves With Cylindrical Roller | ||||||||||
| Product Material | Steel | ||||||||||
| Product No. |
Wire (mm) |

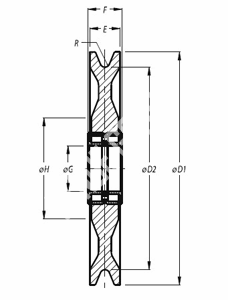

Dimensions (mm) | Bearing | Material |
Weight (kg) | ||||||
| D1 | D2 | E | F | G | H | R | |||||
| MHAE086-SL001 | 22 | 250 | 195 | 50 | 60 | 60 | 120 | 12 | NNF 5012 | GGG-60 | 12 |
| MHAE086-SL002 | 24 | 300 | 250 | 55 | 60 | 65 | 130 | 13 | NNF 5013 | GGG-70 | 15 |
| MHAE086-SL003 | 26 | 350 | 305 | 70 | 75 | 75 | 150 | 14 | NNF 5015 | GGG-70 | 20 |
| MHAE086-SL004 | 32 | 400 | 345 | 75 | 80 | 90 | 180 | 17 | NNF 5018 | GGG-70 | 32 |
| MHAE086-SL005 | 32 | 450 | 390 | 75 | 85 | 100 | 190 | 17 | NNF 5020 | GGG-70 | 48 |
| MHAE086-SL006 | 36 | 500 | 430 | 90 | 100 | 120 | 225 | 19.5 | NNF 5024 | GGG-60 | 80 |
| MHAE086-SL007 | 40 | 550 | 480 | 100 | 120 | 120 | 220 | 21.5 | NNF 5024 | GGG-60 | 80 |
|
1. Different shaft sizes possible. | |||||||||||
