Weathertight Gastight A0 Fire Door(Type B),A0 Fire Door,Class A Fire Door,Fire Door,Marine Door -Product Details

Marine Door >> Fire Door >> Class A Fire Door >> A0 Fire DoorWeathertight Gastight A0 Fire Door(Type B)


Product Name	Weathertight Gastight A0 Fire Door(Type B)
Description	Meet IMO, SOLAS requirements
	Light and easy operation
	Available in natural finish, primed or coated in accordance with client request
Application	SuiTABLE for bulkhead with A0 fireproof, weathertight and gastight requirements.
Material	Steel
Open Side	OL
Option	A60 fireproof, Window, Double door-leaf
Available Certificate	GL, DNV, CCS, BV, ABS, LR, KR, RS, etc

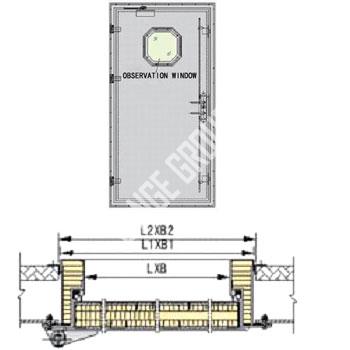

Specifications
Door Leaf	Product No.	Nominal Size	Size of Frame	Cutout in Steel Wall	Weight
		B��L	B1��L1	B2��L2	kg
Single	MOUE010-AF001	600��1600	700��1700	705��1705	65
	MOUE010-AF002	650��1650	750��1750	755��1755	70
	MOUE010-AF003	700��1700	800��1800	805��1805	75
	MOUE010-AF004	800��1750	900��1850	905��1855	80
Double	MOUE010-AF005	1000��1600	1100��1700	1105��1705	108
	MOUE010-AF006	1100��1650	1200��1750	1255��1755	115
	MOUE010-AF007	1300��1700	1400��1800	1455��1805	136
	MOUE010-AF008	1600��1750	1700��1850	1705��1855	156
Sizes and colors will customize according to your requirements
