Marine Valves >> ASME/ANSI/API Marine Valves >> Safety Valves >> ANSI Cast Steel Flange Safety ValveANSI Cast Steel Flanges Safety Valve
 |
 | ||||
| Product Name | ANSI Cast Steel Flanges Safety Valve | ||||

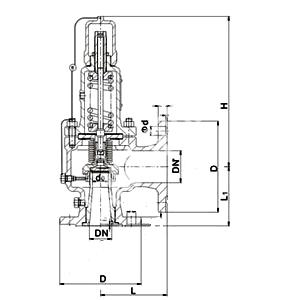

| Product No. | DN | do | L | L1 | H |
| MFVEAC4-AN01 | 32 | 16 | 110 | 95 | 281 |
| MFVEAC4-AN02 | 40 | 20 | 115 | 100 | 285 |
| MFVEAC4-AN03 | 50 | 25 | 120 | 110 | 295 |
| MFVEAC4-AN04 | 65 | 32 | 135 | 120 | 305 |
| MFVEAC4-AN05 | 80 | 40 | 160 | 135 | 394 |
| MFVEAC4-AN06 | 100 | 50 | 170 | 140 | 406 |
| MFVEAC4-AN07 | 125 | 65 | 205 | 160 | 511 |
| MFVEAC4-AN08 | 150 | 80 | 210 | 190 | 586 |
