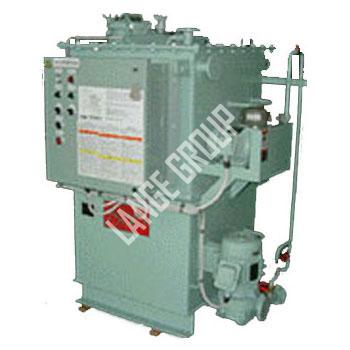

Product Name Sewage Treatment Plant
Product No. MEPE091-SE
Treatment Process Biofilm Process
Parameters|Type MEPE091-SE1 MEPE091-SE2 MEPE091-SE3 MEPE091-SE4 MEPE091-SE5 MEPE091-SE6 MEPE091-SE7 MEPE091-SE8 MEPE091-SE9 MEPE091-SE10 MEPE091-SE11 MEPE091-SE12 MEPE091-SE13
Number Of People p/d 15 25 40 65 90 120 150 200 300 350 400 550 600
Average TTreatment l/d 900 1500 2400 3900 5400 7200 9000 12000 18000 21000 24000 33000 36000
Sewage Treatment Capacity L/h Frequency/d 94*3 156*3 250*3 406*3 563*3 750*3 938*3 1250*3 1825*3 2188*3 2500*3 3438*3 3750*3
BOD g/d 202.5 337.5 540 877.5 1215 1620 2025 2700 4050 4725 5400 7425 8100
Fans Air Flow m3/m 0.22 0.37 0.6 0.98 1.25 1.25 1.59 2.05 3 3.6 4.22 4.99 5.54
Pressure Mpa 0.02 0.025
Motor Input KW 0.4 0.4 0.75 0.75 0.75 0.75 1.5 2.2 2.2 3.7 3.7 3.7 3.7
Discharge Pump Capacity m3/h 3 7
Head m 12
Motor InputKW 1.5 2.2
Power Supply AC380V50HZ3
Discharge Water Quality ss<50mg/l BOD5<50mg/l E.coli<200/100ml
