Marine Valves >> ASME/ANSI/API Marine Valves >> Plug Valves >> Class 150 Cast Steel Plug ValveClass 150 Cast Steel Plug Valve

Product Name Class 150 Cast Steel Plug Valve

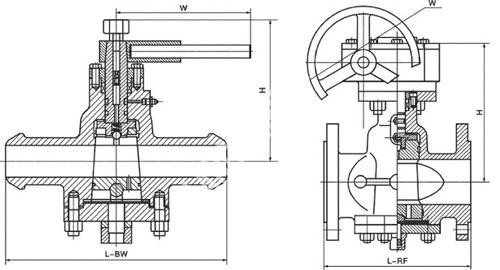

Product No. Size L-RF L-BW H W
MFVEXC4-AN01 15 108 152 180 400
MFVEXC4-AN02 20 117 178 180 400
MFVEXC4-AN03 25 127 203 185 500
MFVEXC4-AN04 32 140 216 200 600
MFVEXC4-AN05 40 165 229 210 600
MFVEXC4-AN06 50 178 267 215 820
MFVEXC4-AN07 65 190 305 250 820
MFVEXC4-AN08 80 203 330 270 820
MFVEXC4-AN09 100 229 356 300 300
