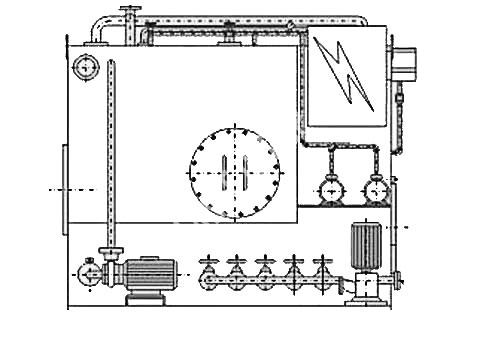

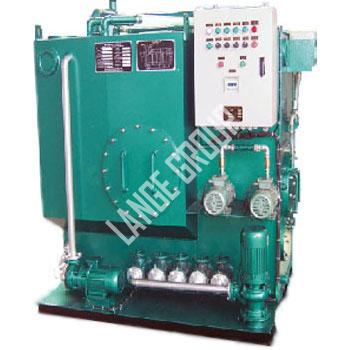

Product Name Sewage Treatment Plant
Product No. MEPE124-SE
Treatment Process Biofilm Process
Parameters|Type MEPE124-SE1 MEPE124-SE2 MEPE124-SE3 MEPE124-SE4 MEPE124-SE5 MEPE124-SE6 MEPE124-SE7 MEPE124-SE8 MEPE124-SE9 MEPE124-SE10 MEPE124-SE11 MEPE124-SE12
Application Number 10 20 30 40 50 60 80 100 150 200 250 300
Processing Load Average 1/p 810 1540 2240 3080 3780 4480 5880 7410 10920 14640 18240 21700
Peak 1/h 105 193 280 385 470 560 735 928 1366 1830 2280 2712
Organic Load 0.42 0.77 1.12 1.54 1.89 2.24 2.94 3.71 5.46 7.35 9.1 10.9
Smash Pump Type 0.5CWF-10 1CWF-11 2CWF-11 3CWF-10
Calorie Capacity 5 10 20 30
Head 10 11 11 10
Rotational Speed 2840 2840 2840 2890
Power 0.75 1.5 2.2 4
Airpump Type CYBW-10 CYBW-20 CYBW-40 CYBW-20
Displacement 10 20 25 60
Barometric Pressure 60 60 60 60
Rotational Speed 1400 1400 1400 1400
Power 0.37 0.75 1.1 2.2
Discharge Pump Type 25CGW-10-15 32CGW-15-20 40CGW-15-30 32CGW-15-20
Calorie Capacity 10 15 15 15
Head 15 20 30 30
Rotational Speed 2840 2840 2840 2840
Motor Power 1.1 1.5 2.2 2.2
Discharge Diameter 25 32 40 40
Power Supply AC380V/50Hz3
Control Model ManualorAutomatic
Pharmaceutical Consumption 0.01 0.03 0.04 0.05 0.06 0.07 0.09 0.11 0.18 0.22 0.28 0.33
Discharge Water Quality SS<50mg/L,BOD5<50mg/L,Colichin<250p/100ml,Phvalve 6-9
Weight Dry Weight 0.85 1.1 1.34 1.5 1.65 1.9 2.45 3.1 5.1 6.4 7.4 8.4
Wet Weight 1.85 3.15 3.85 5.3 6.4 7.65 8.8 10.2 15.4 21.1 27.6 36.2
Dimensions 1150*1100*1450 1500*1200*1760 1650*1580*1760 2000*1680*1870 2400*1800*1900 2500*1950*1900 2950*2050*1900 3300*2050*1900 3500*2500*2200 4300*2700*2200 4490*2900*2400 4900*3150*2400
