Crane Wheels >> Double Flange Wheels-Driving Wheels
Product Name Double Flange Wheels - Driving Wheels
Product Material Steel

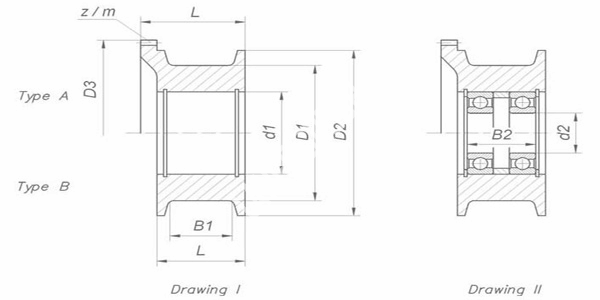

Product No. D1 Drawing Max load
(kg)		 D2 D3 d1K7 d2 B1 B2 L Z/m Bearings
(No)		 Weight
(kg)
MHAE094-DF001 125 I 2,400 150 165 90 - 40 - 78 53/3 - 8.9
MHAE094-DF002 125 II 2,400 150 165 90 40 40 49 78 53/3 6308 10.1
MHAE094-DF003 160 I 3,300 190 204 110 - 40 - 86 66/3 - 14.9
MHAE094-DF004 160 II 3,300 190 204 110 50 40 66 86 66/3 6310 16.9
MHAE094-DF005 200 I 5,500 230 243 130 - 50 - 96 79/3 - 20.0
MHAE094-DF006 200 II 5,500 230 243 130 60 50 63 96 79/3 6312 23.4
MHAE094-DF007 250 I 7,000 290 303 150 - 60 - 115 99/3 - 29.0
MHAE094-DF008 250 II 7,000 290 303 150 70 60 79 115 99/3 6314 34.2
MHAE094-DF009 320 I 10,000 360 363 190 - 60 - 128 119/3 - 42.5
MHAE094-DF010 320 II 10,000 360 363 190 90 60 87 128 119.3 6318 52.5
