Marine Packaged Air Conditioning Plant,Marine Air Conditioning Unit,Marine Central Air Conditioning System,Marine Air Conditioning System -Product Details


Product Name	Marine Packaged Air Conditioning Plant
Product NO.	MACS030-BD
Specifications
Model Item			BD023	BD035	BD046	BD061	BD071	BD081	BD093	BD104	BD116	BD151	BD186	BD232	BD464
Cooling Capacity		kW	23.2	35	46.5	61.7	70.8	81.3	93	104.6	116	151	186	232	464
Cooling Medium			R134a,R404A,R407C
Power Supply	Main Circuit		AC 380V 3P 50Hz/AC 440V 3P 60Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz/AC 220V 1P 60Hz
Protection Devices			Freon high pressure,low pressure,(oil pressure),water cutoff,anti-freezing,phase missing,overload,safety valve(or fusible plug)
Compressor	Type		Hermetic, Semi-hermetic piston, Piston or Screw
Compressor	Motor Power	kW	5.6	10	11.8	15.4	18.2	20	23.1	27.2	30	37	45	60	120
Condenser	Type		Horizontal shell and tube
	Water Inlet Temp	℃	≤32
	Water Flow	m3/h	6	10	12	15	18	21	24	27	30	40	50	60	120
	Water Pressure lose	kPa	30-50				60-90
Drier Evaporator	Type		Horizontal shell and tube
	Water inlet And Out Temp	℃	12/7
	Frozen Water Flow Volume	m3/h	4	6	8	10	12	14	16	18	20	26	32	40	80
	Water Pressure lose		60

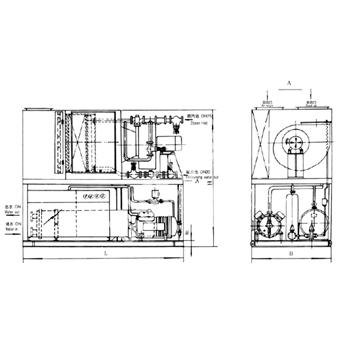

Dimension	Length	mm	1400	1500	1650	1850	1850	2000	2100	2360	2360	2500	2600	2600	3100
	Width	mm	900	1000	1000	1000	1100	1100	1100	1100	1200	1200	1200	1250	1500
	Height	mm	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500	1550	1800
Weight		kg	1100	1200	1400	1600	1700	1800	2000	2500	2700	2900	3500	3500	5000
