Marine Sewage Treatment System >> Sewage Treatment Plant >> Sewage Treatment plant
 |
||||||||

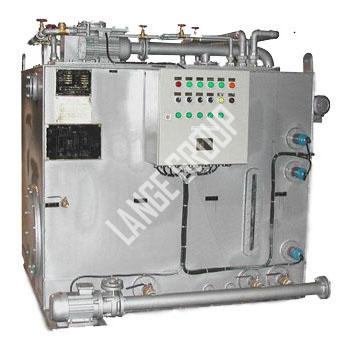

| Product Name | Sewage Treatment Plant | |||||||
| Treatment Process | Biofilm Process | |||||||
| Parameters | ||||||||
| Product No. | MEPE136-SE008 | MEPE136-SE009 | MEPE136-SE010 | MEPE136-SE011 | MEPE136-SE012 | MEPE136-SE013 | MEPE136-SE014 | MEPE136-SE015 |
| Processing Load | ||||||||
| Average Load(L/d) | 3780 | 4480 | 6020 | 7700 | 11200 | 14700 | 18200 | 23100 |
| Peak Load(L/d) | 473 | 560 | 753 | 963 | 1400 | 1838 | 2275 | 2888 |
| Organic Load(kgBOD5/d) | 1.89 | 2.24 | 3.01 | 3.85 | 5.6 | 7.35 | 9.1 | 11.55 |
| Rated The Number Of Users(p) | 50 | 60 | 80 | 100 | 150 | 200 | 250 | 300 |
| Max The Number Of Users(p) | 54 | 64 | 86 | 110 | 160 | 210 | 260 | 330 |
| Power Supply | AC380V 51HZ 33/AC440 60HZ | |||||||
| Power(kw) | 2 | 2 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Weight | ||||||||
| Dry Weight(kg) | 1750 | 1950 | 2150 | 2900 | 3800 | 4050 | 5000 | 6000 |
| Wet Weight(kg) | 5665 | 6486 | 8100 | 10400 | 14680 | 18330 | 22100 | 28172 |
| Discharging Standard | BOD5(250P/100ml/PH 6-9 | |||||||
