Trolley >> Push Beam Trolley
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Name | Push Beam Trolley | ||||||||
| Product Material | Steel | ||||||||

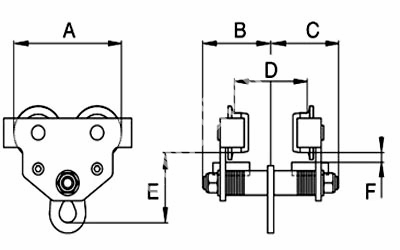

| Product No. | Capacity | A | B | C | D (range 1) | D (range 2) | E | Weight | Hand Chain Length |
| Ton | mm | mm | mm | mm | mm | mm | kg | m | |
| MHAE0112-BT001 | 0.5 | 244 | 106 | 106 | 62-128 | 130-203 | 98 | 5.4 | 2.5 |
| MHAE0112-BT002 | 1 | 266 | 113 | 113 | 62-128 | 130-203 | 106 | 7.8 | 2.5 |
| MHAE0112-BT003 | 2 | 292 | 136 | 136 | 88-154 | 155-230 | 132 | 12.6 | 2.5 |
| MHAE0112-BT004 | 3 | 344 | 152 | 152 | 87-153 | 155-230 | 150 | 19.8 | 2.5 |
| MHAE0112-BT005 | 5 | 394 | 175 | 175 | 106-194 | 200-305 | 174 | 31 | 2.5 |
| MHAE0112-BT006 | 10 | 429 | 252 | 252 | 125-310 | - | 240 | 145.5 | 2.5 |
