Product Name	Marine Indirect Style Air Conditioner
Product NO.	MACS030-BH
Specifications
Model Item			BH023	BH035	BH046	BH058	BH070	BH081	BH093	BH104	BH116	BH151	BH186	BH216



Cooling Capacity		kW	23.3	34.9	46.5	58.1	69.8	81.3	93	104.6	116.2	151.2	186	216.3
Heating Capacity		kW	36.7	39.5	53.5	67	80	93	107	116.2	132.6	169.8	214	240
Namely Air Volume		m3/h	2180	3710	4240	5110	6310	7160	8200	9150	10500	13600	16100	18500
Cooling Medium			R404A,R407C,R507
Heating Way			Steam heated or hot water heated
Power Supply	Main Circuit		AC 380V 3P 50Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz
Outside Static Pressure	Middle	Pa	450	1370	1370	1370	1370	1370	1570	1570	1570	1470	1470	1470
	Low	Pa	450	540	700	590	540	590	490	590	590	590	590	590
Fan	Type		Motor inline with the marine direct-driven centrifugal fan or belt -driven double centrifugal fan with double air inlet
Fan	Motor Power(A/D)	kW	1.5	4.0/3.0	5.5/3.0	7.5/4.0	7.5/4.0	11/5.5	11/5.5	15/7.5	15/7.5	18.5/11	18.5/11	22/11
Cooler/Heater	Type		Copper tue with copper fin
Cooler/Heater	Meduim Volume	m3/h	4.5	7	9	11.5	13.5	16	18	20	23	29	36	40
Steam Heater	Type		Copper tue with copper fin
Steam Heater	Steam consumption	kg/h	45	65	90	110	125	145	160	200	220	265	320	390
Humidifier	Type		Steam-sprayed
Humidifier	Steam consumption	kg/h	8	12	16	20	24	28	32	36	40	50	60	70

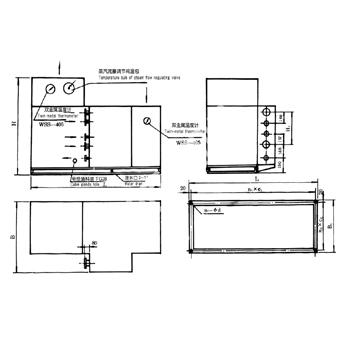

Dimension	Length	mm	2100	2100	2500	2500	2850	2850	2900	2900	3200	3200	3500	3500
	Width	mm	1100	1100	1200	1200	1200	1400	1550	1550	1600	1600	1900	1900
	Height	mm	1500	1600	1700	1700	2000	2000	2000	2000	2000	2000	2150	2150
Weight		kg	750	780	800	900	1000	1000	1100	1200	1500	1700	1900	1900
