Trolley >> Geared Beam Trolley
 |
 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Name | Geared Beam Trolley | ||||||||
| Product Material | Steel | ||||||||

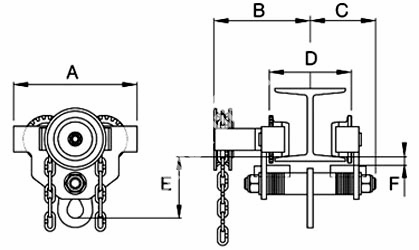

| Product No. | Capacity | A | B (geared) | C | D (range 1) | D (range 2) | E | Weight (geared - 2.5m HC) | Hand Chain Length |
| Ton | mm | mm | mm | mm | mm | mm | kg | m | |
| MHAE0113-GT001 | 0.5 | 244 | 165 | 106 | 62-128 | 130-203 | 98 | 9.4 | 2.5 |
| MHAE0113-GT002 | 1 | 266 | 180 | 113 | 62-128 | 130-203 | 106 | 11.7 | 2.5 |
| MHAE0113-GT003 | 2 | 292 | 186 | 136 | 88-154 | 155-230 | 132 | 17.1 | 2.5 |
| MHAE0113-GT004 | 3 | 344 | 191 | 152 | 87-153 | 155-230 | 150 | 24.3 | 2.5 |
| MHAE0113-GT005 | 5 | 394 | 212 | 175 | 106-194 | 200-305 | 174 | 35.6 | 2.5 |
| MHAE0113-GT006 | 10 | 429 | 327 | 252 | 125-310 | - | 240 | 162 | 2.5 |
| MHAE0113-GT007 | 0.5 | 244 | 165 | 106 | 62-128 | 130-203 | 98 | 9.4 | 2.5 |
