Trolley >> Adjustable Beam Trolleys
 |
 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Product Name | Adjustable Beam Trolleys | |||||||||||
| Product Material | Steel | |||||||||||

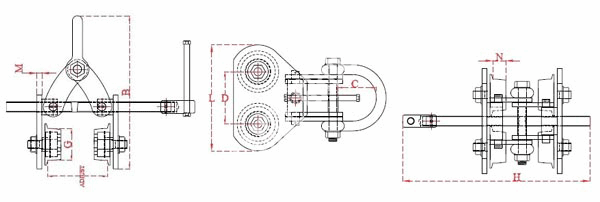

| Product No: | Capacity (kg) | Adjust (mm) | Max flange Thickness | Dimensions (mm) | Weight | |||||||
| B | C | D | G | H | L | M | N | |||||
| kg | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | |
| MHAE0114-AB001 | 3000 | 76 - 203 | 28 | 395 | 112 | 133 | 82 | 480 | 269 | 12.5 | 33 | 23.5 |
| MHAE0114-AB002 | 6000 | 105 - 305 | 32 | 515 | 100 | 176 | 125 | 560 | 356 | 15 | 34 | 50 |
| MHAE0114-AB003 | 10000 | 160 -160 | 38 | 570 | 130 | 200 | 145 | 785 | 430 | 15 | 41 | 74.5 |
