Trolley >> Push Trolley Combination Hoist
 |
 | ||||||
|---|---|---|---|---|---|---|---|
| Product Name |
Push Trolley Combination Hoist | ||||||
| Product Material |
Steel | ||||||
| Product No. | MHAE0115-PC001 | MHAE0115-PC002 | MHAE0115-PC003 | MHAE0115-PC004 | MHAE0115-PC005 | ||
| Capacity (kg) | 500 | 1000 | 1500 | 2000 | 3000 | ||
| Test Load (KN) | 7.35 | 14.71 | 22.06 | 29.42 | 44.13 | ||
|
Min,Radius Curve (m) |
0.85 | 1.0 | 1.1 | 1.1 | 1.3 | ||
|

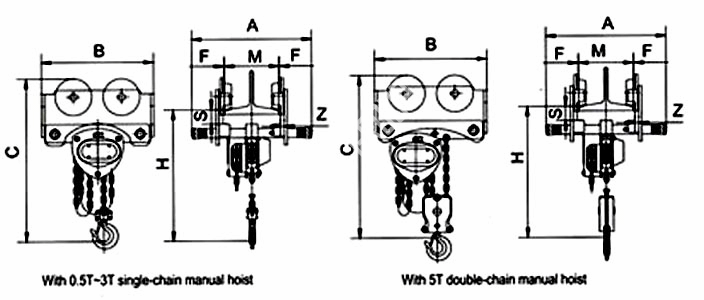

Dimensions (mm) |
A | a | 236 | 303 | 310 | 317 |
Dimensions (mm) |
| b | 286 | 405 | 412 | 419 | |||
| B | 258 | 292 | 319 | 358 | 434 | ||
| C | 385 | 451 | 489 | 551 | 629 | ||
| H | 299 | 331 | 383 | 411 | 460.5 | ||
| S | 30 | 35 | 38 | 38 | 40 | ||
| Z | 7.5 | 10.5 | 10.5 | 12 | 14 | ||
| F | 1.5 - 3 | ||||||
| I-Beam Width Range (mm) | 50-152 | 64-203 | 74-203 | 88-203 | 100-203 | ||
| Net Weight Range mm | 50-203 | 64-305 | 74-305 | 88-305 | 100-305 | ||
| 15 | 23.3 | 33 | 45.5 | 61 | |||
| 17 | 25.3 | 35 | 47.5 | 65 | |||
