Product Name	Marine Water Chiller
Product NO.	MACS030-CF
Specifications
Model Item			CF012	CF023	CF035	CF046	CF058	CF070	CF082	CF093	CF105	CF116	CF140	CF151	CF175	CF210
Cooling Capacity		kW	11.6	23	35	46	58	70	82	93	105	116	140	151	175	210
Cooling Medium			R134a,R404A,R407C
Power Supply	Main Circuit		AC 380V 3P 50Hz/AC 440V 3P 60Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz/AC 220V 1P 60Hz
Protection Devices			Freon high pressure,freon low pressure,(oil pressure),water stop,lack phase,overload,safety valve
Compressor	Type		Hermetic or semi-hermetic compressor
Compressor	Motor Power	kW	4.2	6.6	9	15	19	22	24	26	30	37	2x22	2x24	2x26	2x30
Condenser	Type		Horizontal shell and tube
	Water Inlet Temp	℃	≤32
	Water Flow	m3/h	3	7	10	13.5	17	20	23	26	30	35	40	42	50	60
	Water Pressure lose	kPa	≤50			≤70				≤80
Drier evaportor	Type		Horizontal shell and tube
	Water inlet and outel temp	℃	12/7
	Frozen water flow	m3/h	2	4	6	8	10	12	14	16	18	20	24	26	30	36
	Water pressure lose	kPa	≤60								≤100

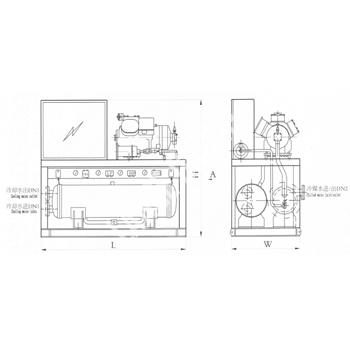

Dimension	Length	mm	1200	1400	1400	4650	1800	1800	1800	1900	2000	2100	2100	2500	2650	2800
	Width	mm	500	600	700	850	850	950	950	1100	1100	1150	1100	1400	1400	1400
	Height	mm	1200	1450	1500	1500	1500	1600	1600	1600	1600	1600	1750	1750	1800	1800
DN1			DN25	DN32	DN40	DN40	DN50	DN65	DN65	DN65	DN65	DN65	2xDN50	2xDN65	2xDN65	2xDN65
DN2			DN25	DN32	DN40	DN50	DN50	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100	DN100
Weight		kg	600	800	950	1150	1350	1500	1600	1800	2000	2200	2400	2600	3000	3200
