Product Name Eye and Eye Contact Angular
Product Material Steel

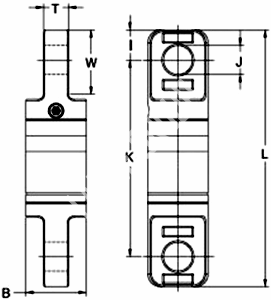

Product No. Wire Line Size (mm) Working Load Limit (tonnes) B (mm) K (mm) L (mm) C (mm) A (mm) D (mm) H (mm) Net Weight (Kg)
MHAE0142-EE001 6 0.68 32 103 139 18 12 19 37 0.4
MHAE0142-EE002 10 1.35 40 117 160 22 15 23 43 0.8
MHAE0142-EE003 13 2.7 51 158 214 28 20 27 51 2.0
MHAE0142-EE004 16 4.5 64 210 276 33 26 33 59 3.9
MHAE0142-EE005 19 7.65 76 249 325 38 32 37 82 7.4
MHAE0142-EE006 22 9.0 102 310 413 52 42 44 90 16.8
MHAE0142-EE007 25 13.5 108 316 443 64 49 54 110 17.7
MHAE0142-EE008 32 22.5 132 407 547 70 60 66 130 32.7

Note:
1.Supplied corrosion resistant as standard (Zinc plated) for quality and longer life.
2.Made With grease fittings for long life and performance.
3.All of the options available are to suit different for Wire lines, diameters from 1/4" to 2" (6mm to 32mm).
