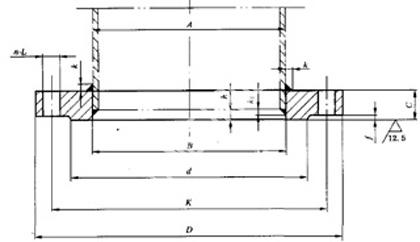

GB2506 Slip-On Flanges |
| Product NO. |
DN |
A |
D |
K |
B |
C |
d |
f |
h |
Th. |
L |
n |
| Series 1 |
Series 2 |
| MFVE603-GB01 |
10 |
17.2 |
17 |
75 |
50 |
18 |
12 |
33 |
2 |
4 |
M10 |
11 |
4 |
| MFVE603-GB02 |
15 |
21.3 |
22 |
80 |
55 |
23 |
38 |
| MFVE603-GB03 |
20 |
26.9 |
27 |
90 |
65 |
28 |
14 |
48 |
| MFVE603-GB04 |
25 |
33.7 |
34 |
100 |
75 |
35 |
58 |
| MFVE603-GB05 |
32 |
42.4 |
42 |
120 |
90 |
43 |
16 |
69 |
5 |
M12 |
14 |
| MFVE603-GB06 |
40 |
48.3 |
48 |
130 |
100 |
49 |
78 |
| MFVE603-GB07 |
50 |
60.3 |
60 |
140 |
110 |
61 |
88 |
| MFVE603-GB08 |
65 |
76.1 |
76 |
160 |
130 |
77.5 |
108 |
| MFVE603-GB09 |
80 |
88.9 |
89 |
190 |
150 |
90.5 |
18 |
124 |
M16 |
18 |
| MFVE603-GB10 |
100 |
114.3 |
114 |
210 |
170 |
116 |
144 |
