Product Name Eye & Jaw Style Contact Angular Swivel
Product Material Steel

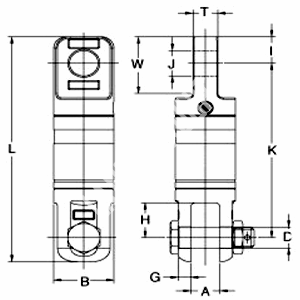

Product No. Wire Line Size (mm) Working Load Limit (tonnes) B (mm) K (mm) L (mm) C (mm) A (mm) D (mm) H (mm) Net Weight (Kg)
MHAE0143-EJ001 6 0.68 32 103 139 18 12 19 37 0,4
MHAE0143-EJ002 10 1.35 40 117 160 22 15 23 43 0.8
MHAE0143-EJ003 13 2.7 51 158 214 28 20 27 51 2.0
MHAE0143-EJ004 16 4.5 64 210 276 33 26 33 59 3.9
MHAE0143-EJ005 19 7.65 76 249 325 38 32 37 82 7.4
MHAE0143-EJ006 22 9.0 102 310 413 52 42 44 90 16.8
MHAE0143-EJ007 25 13.5 108 316 443 64 49 54 110 17.7
MHAE0143-EJ008 32 22.5 132 407 547 70 60 66 130 32.7

Note:
1.Supplied corrosion resistant as standard (Zinc plated) for quality and longer life.
2.Made With grease fittings for long life and performance.
3.All of the options available are to suit different for Wire lines, diameters from 1/4" to 2" (6mm to 32mm).
