Marine Air Conditioning System >> Marine Semi-central Air Conditioning >> Marine Horizontal Hidden Mounted Fan Coil Unit
 |
 |
||||||
Product Name |
Marine Horizontal Hidden Mounted Fan Coil Unit |
||||||
Product NO. |
MACS031-FH |
||||||
Specifications |
|||||||
Model Item |
FH002 |
FH003 |
FH004 |
FH005 |
FH006 |
||
Cooling Capacity |
kW |
2 |
3 |
4 |
5 |
6 |
|
Heating Capacity |
kW |
6 |
7.2 |
10.2 |
14.4 |
18 |
|
Namely Air Flow |
m3/h |
360 |
540 |
720 |
900 |
1,000 |
|
Cooling Medium Temperature Of Water Inlet |
7℃ chilled water |
||||||
Heating Medium Temperature Of Water Inlet |
≥45℃ hot water |
||||||
Refrigerant |
R134A,R404A,R407C |
||||||
Power Supply |
220V 1P 60Hz/220V 1P 50Hz |
||||||
Fan |
Type |
Low noise centrifugal fan |
|||||
Motor Power |
kW |
0.04 |
0.04 |
0.04 |
0.04 |
0.04 |
|
Air Cooler(heater) |
Type |
Low noise centrifugal fan |
|||||
Cold/hot water inlet temp |
℃ |
7/45 |
|||||
Water flow |
m3/h |
0.34 |
0.52 |
0.68 |
0.86 |
1.03 |
|
Water pressure loss |
kPa |
20 |
25 |
30 |
35 |
35 |
|
Noise |
dB(A) |
≤42 |
≤45 |
≤46 |
≤48 |
≤49 |
|

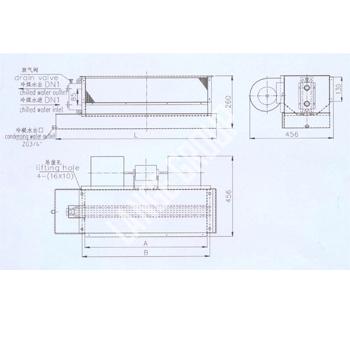

Dimension |
L |
mm |
840 |
940 |
1070 |
1200 |
1300 |
A |
mm |
480 |
580 |
700 |
795 |
875 |
|
B |
mm |
520 |
620 |
740 |
835 |
915 |
|
| DN1 |
DN15 |
DN15 |
DN20 |
DN20 |
DN20 |
||
Weight |
kg |
20 |
23 |
26 |
28 |
30 |
|
