Common-Sling Connectings >> Swivel >> Jaw And Jaw Style Swivel >> Jaw & Jaw Style Contact Angular Swivel
 |
 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
Product Name |
Jaw & Jaw Style Contact Angular Swivel | ||||||||||
|
Product Material |
Steel | ||||||||||

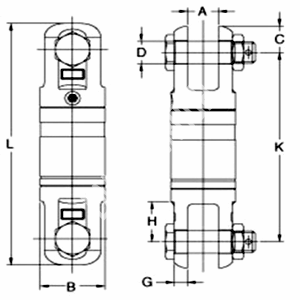

| Product No. | Wire Line Size (mm) | Working Load Limit (tonnes) | B (mm) | K (mm) | L (mm) | C (mm) | A (mm) | D (mm) | G (mm) | H (mm) | Net Weight (Kg) |
|
MHAE0144-JJ001 |
6 | 0.68 | 32 | 103 | 128 | 13 | 15 | 10 | 6 | 22 | 0.4 |
|
MHAE0144-JJ002 |
10 | 1.35 | 40 | 112 | 152 | 20 | 18 | 13 | 8 | 26 | 0.9 |
|
MHAE0144-JJ003 |
13 | 2.7 | 51 | 158 | 208 | 25 | 23 | 19 | 10 | 32 | 2.2 |
|
MHAE0144-JJ004 |
16 | 4.5 | 64 | 200 | 261 | 31 | 32 | 22 | 14 | 37 | 4.4 |
|
MHAE0144-JJ005 |
19 | 7.65 | 76 | 252 | 320 | 34 | 40 | 30 | 14 | 53 | 7.7 |
|
MHAE0144-JJ006 |
22 | 9.0 | 102 | 316 | 412 | 48 | 42 | 38 | 25 | 54 | 18.0 |
|
MHAE0144-JJ007 |
25 | 13.5 | 108 | 316 | 420 | 52 | 48 | 38 | 25 | 57 | 20.0 |
|
MHAE0144-JJ008 |
32 | 22.5 | 132 | 374 | 503 | 65 | 62 | 51 | 30 | 70 | 35.5 |
|
Note: 1.Supplied corrosion resistant as standard (Zinc plated) for quality and longer life. 2.Made With grease fittings for long life and performance. 3.All of the options available are to suit different for Wire lines, diameters from 1/4" to 2" (6mm to 32mm). | |||||||||||
