Marine Window >> Side Scuttle >> Opening Side Scuttle >> Opening Bolted Side ScuttleShare Hinge Opening Bolted Side Scuttle (Medium)
  | ||||||||||||||
|
Product Name |
Share Hinge Opening Bolted Side Scuttle (Medium) | |||||||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | |||||||||||||
|
Description |
Meet IMO, SOLAS requirements | |||||||||||||
|
Used above bulkhead deck or freeboard deck and fore- or rear-end of superstructure | ||||||||||||||
|
Designed according to GB/T14413 and ISO1751 | ||||||||||||||
|
Watertight, gastight | ||||||||||||||
|
Material |
Steel, brass, aluminum | |||||||||||||
|
Glass Option |
Clear glass, frosted glass, fireproof glass | |||||||||||||
|
Specifications | ||||||||||||||

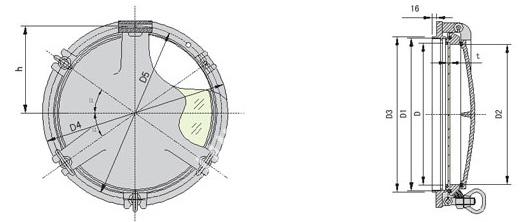

| Product No. | Nominal Size (D) | D1 | D2 | D3 | D4 | D5 | h | t (Y1) | a | Clip Quantity | Bolt | Cutout Size | ||
| Deadlight | Frame | Whorl | Quantity | |||||||||||
| MOUE020-BB007 | 200 | 245 | 204 | 250 | 350 | 310 | 155 | 8 | 45° | 2 | 3 | M12 | 8 | 253 |
| MOUE020-BB008 | 250 | 295 | 254 | 305 | 400 | 364 | 182 | 8 | 48° | M16 | 308 | |||
| MOUE020-BB009 | 300 | 350 | 304 | 360 | 450 | 414 | 207 | 10 | 31° | 3 | M16 | 12 | 363 | |
| MOUE020-BB010 | 350 | 400 | 354 | 410 | 500 | 464 | 232 | 12 | 32° | M16 | 413 | |||
| MOUE020-BB011 | 400 | 450 | 404 | 460 | 550 | 514 | 257 | 12 | 31° | M18 | 463 | |||
| MOUE020-BB012 | 450 | 500 | 454 | 510 | 600 | 564 | 282 | 15 | 31° | 4 | M20 | 513 | ||
