Marine Window >> Side Scuttle >> Opening Side Scuttle >> Opening Bolted Side ScuttleOpening Bolted Side Scuttle (Light)
  | ||||||||||||||
|
Product Name |
Opening Bolted Side Scuttle (Light) | |||||||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | |||||||||||||
|
Description |
Meet IMO, SOLAS requirements | |||||||||||||
|
Used for side and rear-end of superstructure above the freeboard deck | ||||||||||||||
|
Designed according to GB/T14413 and ISO1751 | ||||||||||||||
|
Watertight, gastight | ||||||||||||||
|
Material |
Steel, brass, aluminum | |||||||||||||
|
Glass Option |
Clear glass, frosted glass, fireproof glass | |||||||||||||
|
Specifications | ||||||||||||||

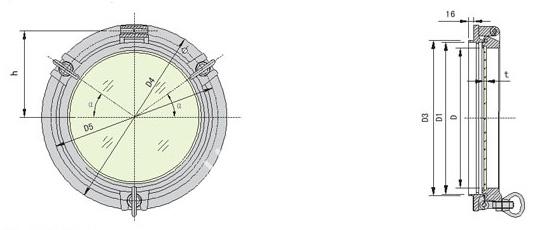

| Product No. | Nominal Size (D) | D1 | D3 | D4 | D5 | h | t (Y1) | a | Clip Quantity | Bolt | Cutout Size | |||
| Deadlight | Frame | Whorl | Quantity | |||||||||||
| MOUE020-BC001 | 200 | 245 | 250 | 350 | 310 | 155 | 6 | 45° | \ | 3 | M12 | 8 | 253 | |
| MOUE020-BC002 | 250 | 295 | 305 | 400 | 364 | 182 | 6 | 42° | M16 | 308 | ||||
| MOUE020-BC003 | 300 | 350 | 360 | 450 | 414 | 207 | 8 | 31° | M16 | 12 | 363 | |||
| MOUE020-BC004 | 350 | 400 | 410 | 500 | 464 | 232 | 8 | 32° | M16 | 413 | ||||
| MOUE020-BC005 | 400 | 450 | 460 | 550 | 514 | 257 | 10 | 31° | M18 | 463 | ||||
| MOUE020-BC006 | 450 | 500 | 510 | 600 | 564 | 282 | 10 | 31° | 4 | M20 | 513 | |||
