Product Name	Marine Air Cooled Split Air Conditioner
Product NO.	MACS032-KH
Specifications
Model Item			KH003	KH004	KH005	KH006	KH007	KH008	KH010	KH011	KH012	KH013	KH014	KH015	KH020	KH025
Cooling Capacity		kW	3	4	5	6	7	8	10	11	12	13	14	15	20	25
Heating Capacity		kW	1.5	2	2.5	3	3.5	4	5	5.5	6	6.5	7	7.5	10	12.5
Cooling Medium			R134a R404A R407C
Heating Type			Electric heating tube with stainless steel fin or light tube
Power Supply	Main Circuit		AC 380V 3P 50Hz/AC 440V 3P 60Hz
Power Supply	Control Circuit		AC 220V 1P 50Hz/AC 220V 1P 60Hz
Protection Devices			Freon high pressure,freon low pressure,super heat,lack phase,overload
Compressor	Type		Hermetic
Compressor	Motor power	kW	1.4	1.4	1.8	2.3	2.5	2.9	3.6	4	4.2	4.7	4.9	5.6	6.1	7
Evaporator type			Copper tue with copper fin
Indoor unit fan	Type		Low noise centrifugal fan
	Air flow	m3/h	600	800	1000	1200	1400	1600	2000	2200	2400	2600	2800	3000	4000	5000
	Motor power	kW	40	40	40	40	90	90	90	90	90	90x2	90x2	90x2	90x2	90x2
Cooling fan of outdoor unit	Type		Low nosie axial fan
	Air flow	m3/h	2000	22000	2800	3300	3800	4400	5400	6000	6300	7200	7600	8600	11500	13000
	Motor power	kW	0.37	0.37	0.37	0.37	0.55	0.75	0.75	0.75	1.1	0.55x2	0.55x2	0.75x2	0.75x2	1.1x2
Dia.of indoor/outdoor unit liquid pipe		mm	p10x1	p10x1	p10x1	p10x1	p10x1	p12x1	p12x1	p12x1	p12x1	p12x1	p12x1	p12x1	p16x1.5	p16x1.5
Dia.of indoor/outdoor unit return gas pipe		mm	p12x1	p12x1	p16x1.5	p19x1.5	p19x1.5	p19x1.5	p19x1.5	p22x1.5	p22x1.5	p22x1.5	p22x1.5	p22x1.5	p28x1.5	p32x1.5
Connection pipe length of indoor and outdoor unit		mm	≤12000
Dimession	Indoor unit	mm	950x380x400		466x440x1750					600x440x1750		1000x460x1350			1100x500x1783	1200x500x1800
Dimession	Outdoor unit	mm	900x460x900		1050x460x950		1150x460x1000		1250x460x1150	1300x460x1250	1300x460x1350		1400x460x1350x		1500x480x1450	1500x480x1500
Indoor unit weight		kg	62	65	120	130	140	140	156	165	170	185	192	210	230	270
Outdoor unit weight		kg	170	175	180	195	220	230	235	260	280	290	310	320	340	400
Indoor unit noise		dB(A)	≤60	≤60	≤60	≤60	≤62	≤62	≤62	≤62	≤62	≤65	≤65	≤68	≤68	≤68
Outdoor unit noise		dB(A)	≤80	≤80	≤80	≤85	≤85	≤85	≤85	≤80	≤80	≤80	≤85	≤85	≤85	≤85

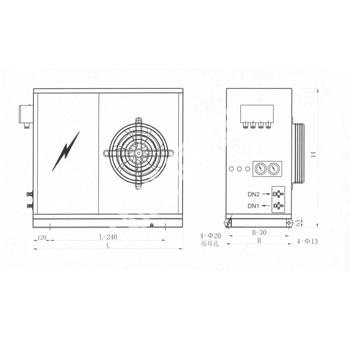

Outdoor unit dimession	L	mm	900	900	1050	1050	1150	1150	1250	1300	1300	1300	1400	1400	1500	1500
	B	mm	460	460	460	460	460	460	460	460	460	460	460	460	480	480
	H	mm	900	900	950	950	1000	1000	1150	1250	1350	1350	1350	1350	1450	1500
	DN1		DN8	DN8	DN8	DN8	DN8	DN10	DN10	DN10	DN10	DN10	DN10	DN10	DN13	DN13
	DN2		DN10	DN10	DN13	DN16	DN16	DN16	DN16	DN19	DN19	DN19	DN19	DN19	DN25	DN29
Indoor unit dimession	L	mm	466	466	466	466	466	466	466	600	600	1000	1000	1000	1100	1200
	B	mm	440	440	440	440	440	440	440	440	440	460	460	460	500	500
	H	mm	1750	1750	1750	1750	1750	1750	1750	1750	1750	1783	1783	1783	1783	1800
	DN1		DN8	DN8	DN8	DN8	DN8	DN10	DN10	DN10	DN10	DN10	DN10	DN10	DN13	DN13
	DN2		DN10	DN10	DN13	DN16	DN16	DN16	DN16	DN19	DN19	DN19	DN19	DN19	DN25	DN29
	DNm		DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16	DN16
