Marine Valves >> GB/T Marine Valves >> Check Valves >> GB PN1.6MPa Cast Steel Check ValveGB PN 1.6MPa Cast Steel Check Valve

Product Name	GB PN 1.6MPa Cast Steel Check Valve

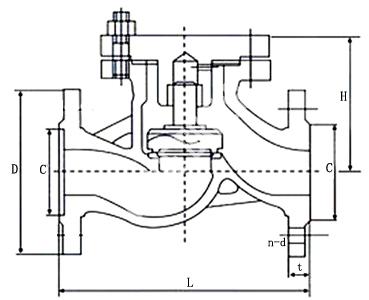

Product No	DN	L									D	C	n-d	t								H
MFVEHC4-GB01	15	130									95	45	4-14	14								58
MFVEHC4-GB02	20	150									105	55	4-14	14								63
MFVEHC4-GB03	25	160									115	65	4-14	14								71
MFVEHC4-GB04	32	180									135	78	4-18	16								84
MFVEHC4-GB05	40	200									145	85	4-18	16								96
MFVEHC4-GB06	50	230									160	100	4-18	16								115
MFVEHC4-GB07	65	290									180	120	4-18	18								145
MFVEHC4-GB08	80	310									195	135	8-18	20								156
MFVEHC4-GB09	100	350									215	155	8-18	20								170
MFVEHC4-GB10	125	400									245	185	8-18	22								201
MFVEHC4-GB11	150	480									280	210	8-23	24								238
