Marine Window >> Side Scuttle >> Non-Opening Side Scuttle >> Non-Opening Bolted Side ScuttleNon-Opening Bolted Side Scuttle (Light)
  | |||||||||
|
Product Name |
Non-Opening Bolted Side Scuttle (Light) | ||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | ||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||
|
Used for side and rear-end of superstructure above the freeboard deck | |||||||||
|
Designed according to GB/T14413 and ISO1751 | |||||||||
|
Watertight, gastight | |||||||||
|
Material |
Steel, brass, aluminum | ||||||||
|
Glass Option |
Clear glass, frosted glass, fireproof glass | ||||||||
|
Specifications | |||||||||

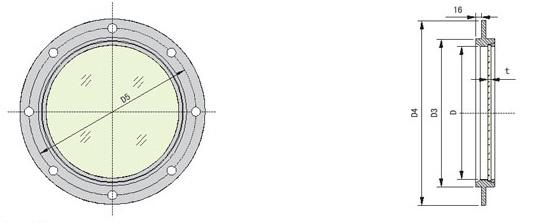

| Product No. | Nominal Size (D) | D3 | D4 | D5 | t (Y1) | Bolt | Cutout Size | ||
| Whorl | Quantity | ||||||||
| MOUE020-BC007 | 200 | 250 | 350 | 310 | 6 | M12 | 8 | 253 | |
| MOUE020-BC008 | 250 | 305 | 400 | 364 | 6 | M16 | 308 | ||
| MOUE020-BC009 | 300 | 360 | 450 | 414 | 8 | M16 | 12 | 363 | |
| MOUE020-BC010 | 350 | 410 | 500 | 464 | 8 | M16 | 413 | ||
| MOUE020-BC011 | 400 | 460 | 550 | 514 | 10 | M18 | 463 | ||
| MOUE020-BC012 | 450 | 510 | 600 | 564 | 10 | M20 | 513 | ||
