Marine Valves >> GB/T Marine Valves >> Globe Valves >> PN1.6MPa Cast Steel Globe ValvePN 1.6MPa Cast Steel Globe Valve

Product Name	PN 1.6MPa Cast Steel Globe Valve

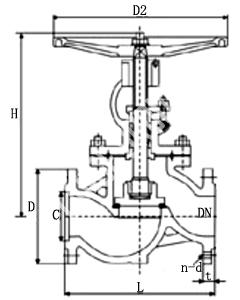

Product No	DN	L									D	C	n-d	t									H	D2
MFVEJC4-GB01	10	130									90	40	4-14	14									198	120
MFVEJC4-GB02	15	130									95	45	4-14	14									218	120
MFVEJC4-GB03	20	150									105	55	4-14	14									258	140
MFVEJC4-GB04	25	160									115	65	4-14	14									275	140
MFVEJC4-GB05	32	180									135	78	4-18	16									280	160
MFVEJC4-GB06	40	200									145	85	4-18	16									330	180
MFVEJC4-GB07	50	230									160	100	4-18	16									350	200
MFVEJC4-GB08	65	290									180	120	4-18	18									370	280
MFVEJC4-GB09	80	310									195	135	8-18	20									400	280
MFVEJC4-GB10	100	350									215	155	8-18	20									415	320
MFVEJC4-GB11	125	400									245	185	8-18	22									460	360
MFVEJC4-GB12	150	480									280	210	8-23	24									510	450
MFVEJC4-GB13	200	600									335	265	12-23	26									710	500
MFVEJC4-GB14	250	650									405	320	12-25	30									786	550
MFVEJC4-GB15	300	750									460	375	12-25	30									925	600
