Marine Valves >> GB/T Marine Valves >> Ball Valves >> PN1.6MPa Ball ValvePN 1.6MPa Ball Valve
Product Name PN 1.6MPa Ball Valve

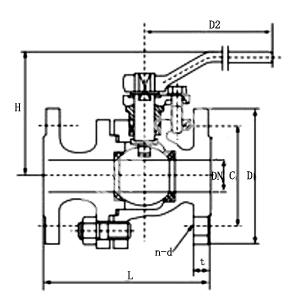

Product No DN L D C n-d t H D2
MFVEQC4-GB01 15 130 95 65 4-14 14 78 140
MFVEQC4-GB02 20 140 105 75 4-14 14 84 160
MFVEQC4-GB03 25 150 115 85 4-14 14 95 180
MFVEQC4-GB04 32 165 135 100 4-18 16 150 250
MFVEQC4-GB05 40 180 145 110 4-18 16 150 300
MFVEQC4-GB06 50 200 160 125 4-18 16 170 350
MFVEQC4-GB07 65 220 180 145 4-18 18 195 350
MFVEQC4-GB08 80 250 195 160 8-18 20 215 400
MFVEQC4-GB09 100 280 215 180 8-18 20 250 500
MFVEQC4-GB10 125 320 245 210 8-18 22 265 600
MFVEQC4-GB11 150 360 280 240 8-23 24 270 800
MFVEQC4-GB12 200 400 335 295 12-23 26 330 1200
