Marine Air Conditioning System >> Marine Central Air Conditioning System >> Marine Water Chilling Unit >> Marine Condensing Unit
 |
 |
|||||||||||
Product Name |
Marine Condensing Unit |
|||||||||||
Product NO. |
MACS033-PC |
|||||||||||
Specifications |
||||||||||||
Model Item |
PC023 |
PC035 |
PC046 |
PC058 |
PC070 |
PC081 |
PC093 |
PC104 |
PC151 |
PC186 |
||
Cooling Capacity |
kW |
23.3 |
34.9 |
46.5 |
58.1 |
69.8 |
81.3 |
93 |
104.6 |
151.1 |
186 |
|
Cooling Medium |
R134a,R404A,R407C |
|||||||||||
Power Supply |
Main Circuit |
AC 380V 3P 50Hz |
||||||||||
Control Circuit |
AC 220V 1P 50Hz |
|||||||||||
Protection Devices |
High pressure, low pressure,water pressure,overload, fusible plug |
|||||||||||
Compressor |
Type |
Hermetic ,Semi-hermetic piston |
||||||||||
Motor Power |
kW |
6.81 |
11 |
11 |
15.2 |
19 |
22 |
26 |
30 |
37 |
45 |
|
Condenser |
Type |
Horizontal shell and tube type, Aluminium-brass tube |
||||||||||
Water Inlet Temp |
℃ |
≤32 |
||||||||||
Cooling Water Flow |
m3/h |
6 |
10 |
13 |
15 |
18 |
21 |
24 |
27 |
40 |
50 |
|
Water Pressure Lose |
kPa |
30 |
40 |
45 |
50 |
60 |
65 |
70 |
75 |
80 |
90 |
|

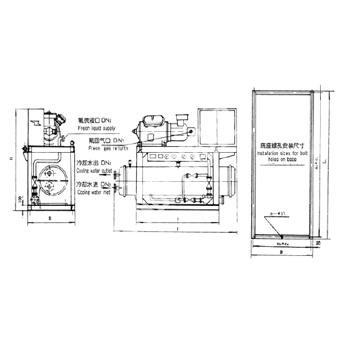

Dimension |
Length |
mm |
1400 |
1500 |
1500 |
1850 |
1850 |
2000 |
2100 |
2360 |
2500 |
2600 |
Width |
mm |
750 |
750 |
500 |
850 |
900 |
900 |
900 |
800 |
1000 |
1200 |
|
Height |
mm |
1400 |
1400 |
1450 |
1450 |
1450 |
1550 |
1550 |
1660 |
1750 |
1750 |
|
Weight |
kg |
550 |
620 |
880 |
900 |
940 |
1050 |
1100 |
1200 |
1300 |
1800 |
|
