Product Name PN 1.6MPa Cast Steel Gate Valve

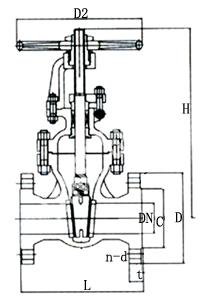

Product No DN L D C t n-d H D2
MFVEZC4-GB01 15 130 95 45 16 4-14 170 120
MFVEZC4-GB02 20 150 105 55 16 4-14 190 140
MFVEZC4-GB03 25 160 115 65 16 4-14 205 160
MFVEZC4-GB04 32 180 135 78 18 4-18 270 180
MFVEZC4-GB05 40 200 145 85 18 4-18 310 200
MFVEZC4-GB06 50 250 160 100 18 4-18 358 240
MFVEZC4-GB07 65 265 180 120 18 8-18 373 240
MFVEZC4-GB08 80 280 195 135 20 8-18 435 280
MFVEZC4-GB09 100 300 215 155 20 8-23 500 300
MFVEZC4-GB10 125 325 245 185 22 8-25 614 320
MFVEZC4-GB11 150 350 280 210 24 8-25 674 360
MFVEZC4-GB12 200 400 335 265 26 12-25 818 400
MFVEZC4-GB13 250 450 405 320 30 12-30 969 450
MFVEZC4-GB14 300 500 460 375 30 16-30 1145 560
MFVEZC4-GB15 350 550 520 435 34 16-34 1280 640
MFVEZC4-GB16 400 600 580 485 36 16-34 1452 640
MFVEZC4-GB17 450 650 640 545 40 20-34 1541 720
MFVEZC4-GB18 500 700 705 608 44 20-41 1676 720
MFVEZC4-GB19 600 800 840 718 48 20-41 1874 800
