Marine Window >> Side Scuttle >> Non-Opening Side Scuttle >> Non-Opening Welded Side ScuttleNon-Opening Welded Side Scuttle (Medium)
  | |||||||||||
|
Product Name |
Non-Opening Welded Side Scuttle (Medium) | ||||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS etc. | ||||||||||
|
Description |
Meet IMO, SOLAS requirements | ||||||||||
|
Used above bulkhead deck or freeboard deck and fore- or rear-end of superstructure | |||||||||||
|
Designed according to GB/T14413 and ISO1751 | |||||||||||
|
Watertight, gastight | |||||||||||
|
Material |
Steel, brass, aluminum | ||||||||||
|
Glass Option |
Clear glass, frosted glass, fireproof glass | ||||||||||
|
Specifications | |||||||||||

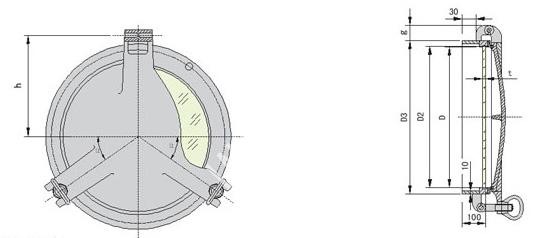

| Product No. | Nominal Size (D) | D2 | D3 | h | t (Y1) | a | gmax | Clip Quantity | Cutout Size | ||
| Deadlight | Frame | ||||||||||
| MOUE020-NWS01 | 200 | 204 | 250 | 155 | 8 | 45° | 50 | 2 | 3 | 253 | |
| MOUE020-NWS02 | 250 | 254 | 305 | 182 | 8 | 42° | 47.5 | 308 | |||
| MOUE020-NWS03 | 300 | 304 | 360 | 207 | 10 | 31° | 45 | 3 | 363 | ||
| MOUE020-NWS04 | 350 | 354 | 410 | 232 | 12 | 32° | 45 | 413 | |||
| MOUE020-NWS05 | 400 | 404 | 460 | 257 | 12 | 31° | 45 | 463 | |||
| MOUE020-NWS06 | 450 | 454 | 510 | 282 | 15 | 31° | 45 | 4 | 513 | ||
