Marine Pipe Fitting >> Elbow >> Bronze >> 45 Degree Elbow45 Degree Bronze Elbow
Product Name 45 Degree Bronze Elbow
Product NO. Nominal Dia. Outside Dia. Center To End

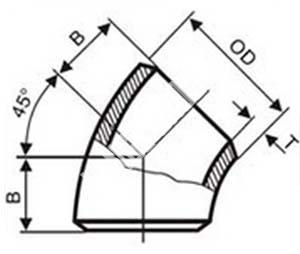

45 degree Elbow
B
DN NPS Series A Series B Long Radius
MFVE609-BE001 15 1/2 21.3 18 16
MFVE609-BE002 20 3/4 26.9 25 19
MFVE609-BE003 25 1 33.7 32 22
MFVE609-BE004 32 1.1/4 42.4 38 25
MFVE609-BE005 40 1.1/2 48.3 45 29
MFVE609-BE006 50 2 60.3 57 35
MFVE609-BE007 65 2.1/2 76.1 76 44
MFVE609-BE008 80 3 88.9 89 51
MFVE609-BE009 90 3.1/2 101.6 - 57
MFVE609-BE010 100 4 114.3 108 64
MFVE609-BE011 125 5 139.7 133 79
MFVE609-BE012 150 6 168.3 159 95
MFVE609-BE013 200 8 219.1 219 127
MFVE609-BE014 250 10 273 273 159
MFVE609-BE015 300 12 323.9 325 190
MFVE609-BE016 350 14 355.6 377 222
MFVE609-BE017 400 16 406.4 426 254
MFVE609-BE018 450 18 457.2 478 286
MFVE609-BE019 500 20 508 529 318
MFVE609-BE020 550 22 559 - 343
MFVE609-BE021 600 24 610 630 381
