Marine Pipe Fitting >> Elbow >> Bronze >> 180 Degree Elbow180 Degree Bronze Elbow
Product Name 180 Degree Long/Short Bronze Elbow

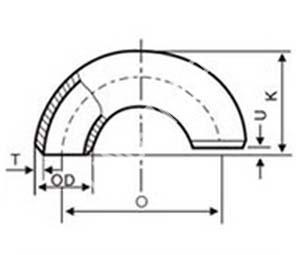

Product No. Nominal Dia. Outside Dia. Center To Center Back To Face
180 degree Elbow
O K
DN NPS Series A Series B Long Radius Short Radius Long Radius(Series A) Short Radius(Series A)
MFVE611-BE001 15 1/2 21.3 18 76 - 48 -
MFVE611-BE002 20 3/4 26.9 25 76 - 51 -
MFVE611-BE003 25 1 33.7 32 76 51 56 41
MFVE611-BE004 32 1.1/4 42.4 38 95 64 70 52
MFVE611-BE005 40 1.1/2 48.3 45 114 76 83 62
MFVE611-BE006 50 2 60.3 57 152 102 106 81
MFVE611-BE007 65 2.1/2 76.1 76 190 127 132 100
MFVE611-BE008 80 3 88.9 89 229 152 159 121
MFVE611-BE009 90 3.1/2 101.6 - 267 178 184 140
MFVE611-BE010 100 4 114.3 108 305 203 210 159
MFVE611-BE011 125 5 139.7 133 381 254 262 197
MFVE611-BE012 150 6 168.3 159 457 305 313 237
MFVE611-BE013 200 8 219.1 219 610 406 414 313
MFVE611-BE014 250 10 273 273 762 508 518 391
MFVE611-BE015 300 12 323.9 325 914 610 619 467
MFVE611-BE016 350 14 355.6 377 1067 711 711 533
MFVE611-BE017 400 16 406.4 426 1219 813 813 610
MFVE611-BE018 450 18 457.2 478 1372 914 914 686
MFVE611-BE019 500 20 508 529 1524 1016 1016 762
MFVE611-BE020 550 22 559 - 1676 1118 1118 838
MFVE611-BE021 600 24 610 630 1829 1219 1219 914
