Marine Window >> Fixed Window >> Steel Fixed Circle Window >> Steel Non-Opening Circle Window with Guard Bar
   | ||||||||||
|
Product Name |
Steel Non-Opening Circle Window with Guard Bar | |||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS, etc. | |||||||||
|
Description |
Meet IMO, SOLAS requirements | |||||||||
|
Used for deck house, light watertight door and skylight | ||||||||||
|
Designed according to GB3889 and JIS F2404 | ||||||||||
|
Specifications | ||||||||||

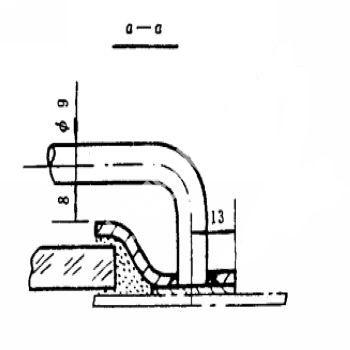

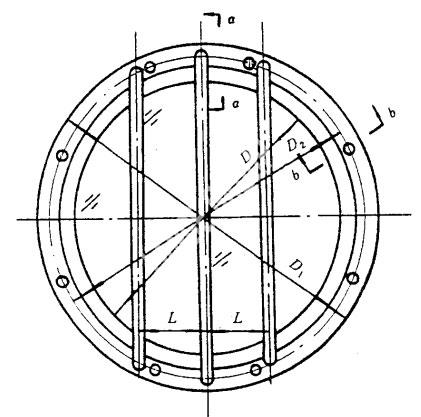

| Product No. | Nominal Size | D1 | D2 | Guard Bar | Bolt Number | Glass | Cutout Size | |||
| D | Quantity | L | Diameter | Thickness | ||||||
| MOUE020-SC007 | 150 | 230 | 204 | 2 | 65 | 6 | 163 | 6 | 150 | |
| MOUE020-SC008 | 200 | 280 | 254 | 3 | 75 | 8 | 213 | 8 | 200 | |
| MOUE020-SC009 | 250 | 330 | 304 | 3 | 65 | 10 | 263 | 8 | 250 | |
| MOUE020-SC010 | 300 | 380 | 354 | 3 | 75 | 10 | 316 | 8 | 300 | |
| MOUE020-SC011 | 350 | 430 | 404 | 4 | 70 | 12 | 366 | 8 | 350 | |
| MOUE020-SC012 | 400 | 480 | 454 | 6 | 65 | 12 | 416 | 10 | 400 | |
