Marine Window >> Skylight >> Long-Side Opening Skylight >> Long-Side Opening Skylight with Two Windows
  | ||||||||||
|
Product Name |
Long-Side Opening Skylight with Two Windows | |||||||||
|
Available Certificate |
ABS, BV, NK, LR, DNV, CCS, GL, KR, RS, RINA, BIS, etc. | |||||||||
|
Option |
Various standard sizes are available and the materials are for user's option | |||||||||
|

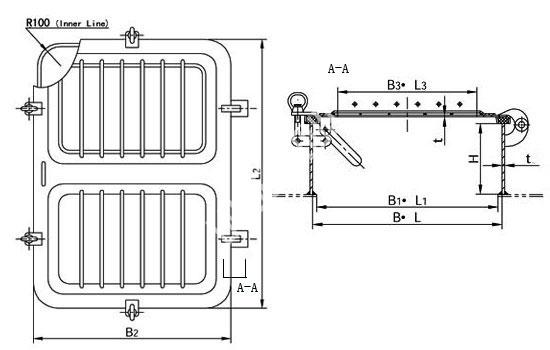

Specification | ||||||||||
| Product No. | Nominal Size | Opening Size | Cover Size | Coaming | Clear Size | Screw | ||||
| B*L(mm) | B1*L1 | R | B2*L2 | Thickness | Thickness | Height | B3*L3 | Quantity | ||
| MOUE020-LS003 | 620*920 | 600*900 | 90 | 670*970 | 6 | 7 | 120 | 2(300*425) | 4 | |
| MOUE020-LS004 | 820*1220 | 800*1200 | 90 | 870*1270 | 6 | 7 | 120 | 2(400*560) | 5 | |
