Product Name Threaded Bronze Cross
Product No. Nominal Diameter Center to End Outside Diameter Wall Thickness Length of Thread

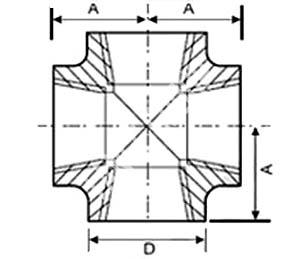

A D C
Cross
DN NPS 2000 3000 6000 2000 3000 6000 2000 3000 6000 NPT Rc
LB LB LB LB LB LB LB LB LB
Sch80 Sch160 XXS Sch80 Sch160 XXS Sch80 Sch160 XXS
MFVE603-BC001 6 1/8 21 21 25 22 22 25 3 3 6.5 6.5 6.5
MFVE603-BC002 8 1/4 21 25 29 22 25 33 3 3.5 6.5 8 10
MFVE603-BC003 10 3/8 25 29 33 25 33 38 3 3.5 7 9 10.5
MFVE603-BC004 15 1/2 29 33 38 33 38 46 3 4 8 11 13.5
MFVE603-BC005 20 3/4 33 38 44 38 46 56 3 4.5 8.5 12.5 14
MFVE603-BC006 25 1 38 44 51 46 56 62 3.5 5 10 14.5 17.5
MFVE603-BC007 32 1.1/4 44 51 60 56 62 75 4 5.5 10.5 17 18
MFVE603-BC008 40 1.1/2 51 60 64 62 75 84 4 5.5 11 18 18.5
MFVE603-BC009 50 2 60 64 83 75 84 102 4.5 7 12 19 19
