Centrifugal Oil Separator >> Separator Unit >> Marine Oil Separator Unit
Product Name:Marine Oil Separator Unit
Product NO.:MOHS202COS-003
Structure:

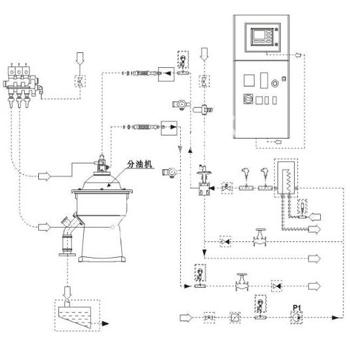

The separator unit is composed of separator,primary fuel filter,fuel oil heater,oil supply pumps,temperature sensors,control box,base,instrument,valves,piping attachments and so on.
Characteristic:
Automatic program control;automatic operation records;
Automatic detection feedback;automatic cycle work;
Automatic fault alarm,automatic analysis judgment.
Technical Parameters
Type Rated Capacity L/h Bowl Speed Max.Starting Current Start Time Working Press. Power
180cst 50℃ 380cst 50℃
r/min A min Mpa Kw
KYDH407SD-23 3450 2450 11800 11-12 3-4 0.2-0.25 5.5
NOTE: According to client needs can provide various types of separator unit.
