Marine Valves >> Strainer >> Water Strainer >> Y-Type StrainerFabricated Y-Strainer
Product Name Fabricated Y-Strainer
Product No MFVELF-JIS01

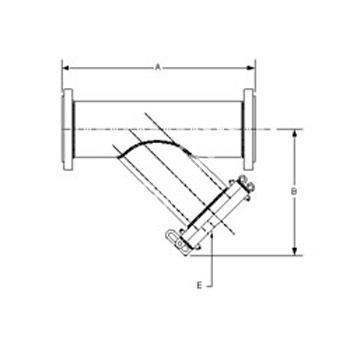

Size A B E
Class150 Class300 Class150 Class300 Class150/300
250 762 787 610 610 40
300 889 914 660 686 40
350 991 1041 762 813 50
400 1143 1194 864 914 50
450 1168 1270 864 914 50
500 1321 1397 965 1016 50
600 1524 1575 1118 1168 50
750 1905 1981 1422 1499 50
