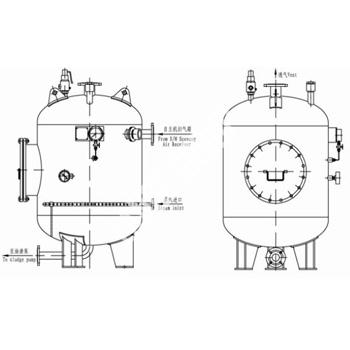

Product Name:Scavenge Air Box Drain Tank
Product NO.:MOHS301OT-001
Application:
The drain tank is used to collect cylinder oil relict,product of combustion,leaky system oil for scavenge air box,after oil gas separation and rubbish precipitated,the dirty oil is pumped to the sludge tank by sludge pump.
Technical Parameters
Type Volume Design Press. Working Press. Outlet Temp. Dimension
m3 Mpa Mpa ℃ L×B×H mm
SADT-0.4 0.4 0.45 0.4 100 1100×950×1550
SADT-0.7 0.7 1200×1050×1700
