Product Name

A0A15 Class Fireproof Service Window

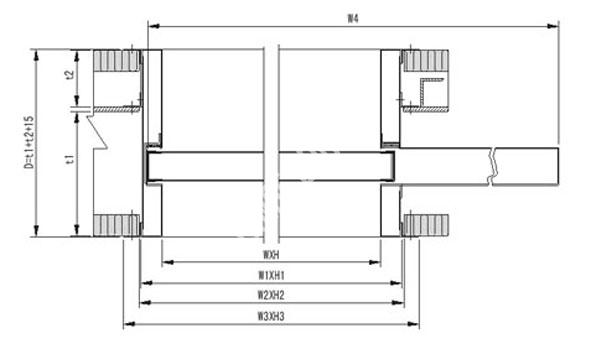

Specifications

Product No. Nominal Size Cutout Size Frame Size Slideway Frame Depth
W*H W2*H2 W1*H1 W3*H3 W4 D t1 t2
MOUE020-RS007 630*500 696*566 690*560 750*620 1350 185 100 70
MOUE020-RS008 900*630 966*696 960*690 1020*750 1890 185 100 70
MOUE020-RS009 1100*800 1167*867 1160*860 1220*920 2290 225 110 100
MOUE020-RS010 1400*1000 1467*1067 1460*1060 1520*1120 2890 225 110 100
MOUE020-RS011 1800*1100 1868*1168 1860*1160 1920*1220 3690 265 140 110
MOUE020-RS012 2300*1200 2368*1268 2360*1260 2420*1320 4690 265 140 110
