| Product Name | Class 125 Cast Iron Strainer | ||||

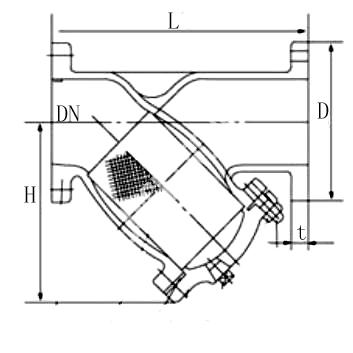

| Product No | DN(IN) | t | L | D | H |
| MFVELK4-AN011 | 2 | 15.9 | 225.4 | 152 | 144 |
| MFVELK4-AN012 | 21/2 | 17.5 | 273 | 178 | 178 |
| MFVELK4-AN013 | 3 | 19.1 | 292.1 | 190 | 195 |
| MFVELK4-AN014 | 4 | 23.9 | 352.4 | 229 | 246 |
| MFVELK4-AN015 | 5 | 23.9 | 416 | 254 | 300 |
| MFVELK4-AN016 | 6 | 25.4 | 469.9 | 279 | 320 |
| MFVELK4-AN017 | 8 | 28.6 | 542.9 | 343 | 397 |
| MFVELK4-AN018 | 10 | 30.2 | 660.4 | 406 | 483 |
| MFVELK4-AN019 | 12 | 31.8 | 762 | 483 | 560 |
| MFVELK4-AN0110 | 14 | 35 | 949 | 533 | 689 |
| MFVELK4-AN0111 | 16 | 36.6 | 1079 | 597 | 789 |
