Product Name |
Weathertight Steel Shutter | ||||||||
|

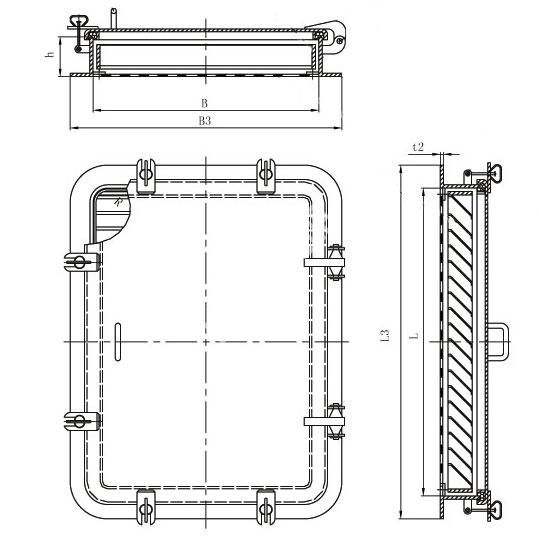

Specifications | |||||||||
| Product No. | Nominal Size | Cover Size | Cutout Size | Frame Size | t2 | t3 | t4 | h | |
| B*L | B1*L1 | B2*L2*R | B3*L3 | ||||||
| MOUE020-WS001 | 150*200 | 192*242 | 200*250*33 | 250*300 | 8 | 3 | 3 | 70 | |
| MOUE020-WS002 | 200*300 | 242*342 | 250*350*33 | 300*400 | |||||
| MOUE020-WS003 | 200*500 | 242*542 | 250*550*33 | 300*600 | |||||
| MOUE020-WS004 | 250*500 | 292*542 | 300*550*33 | 350*600 | |||||
| MOUE020-WS005 | 300*400 | 342*442 | 350*450*33 | 400*500 | 4 | ||||
| MOUE020-WS006 | 600*300 | 642*342 | 650*350*60 | 700*400 | 5 | 4 | |||
| MOUE020-WS007 | 400*600 | 442*642 | 450*650*60 | 512*712 | 85 | ||||
| MOUE020-WS008 | 700*400 | 742*442 | 750*450*60 | 812*512 | |||||
| MOUE020-WS009 | 500*800 | 542*842 | 550*850*80 | 612*912 | 6 | 5 | |||
| MOUE020-WS010 | 600*900 | 644*944 | 660*960*80 | 726*1026 | 10 | 8 | 6 | 95 | |
| MOUE020-WS011 | 800*1500 | 844*1544 | 860*1560*80 | 926*1626 | 8 | ||||
