Marine Valves >> DIN Marine Valves >> Globe Valves >> PN 16 Cast Steel Globe Valve
Product Name PN 16 Cast Steel Globe Valve

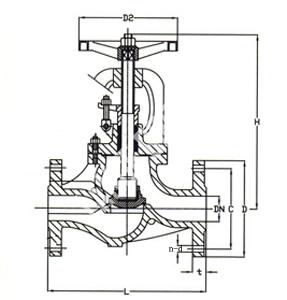

Product Number DN L D C H n-d t D2
MFVEJC4-DIN021 15 130 95 65 180 4-14 2 100
MFVEJC4-DIN022 20 150 105 75 190 4-14 2 100
MFVEJC4-DIN023 25 160 115 85 220 4-14 2 100
MFVEJC4-DIN024 32 180 140 100 220 4-18 2 125
MFVEJC4-DIN025 40 200 150 110 255 4-18 2 160
MFVEJC4-DIN026 50 230 165 125 260 4-18 3 200
MFVEJC4-DIN027 65 290 185 145 265 4-18 3 240
MFVEJC4-DIN028 80 310 200 150 300 8-18 3 280
MFVEJC4-DIN029 100 350 220 180 310 8-18 3 320
MFVEJC4-DIN0210 125 400 250 210 390 8-18 3 360
MFVEJC4-DIN0211 150 480 285 240 410 8-22 3 360
MFVEJC4-DIN0212 200 600 340 255 495 12-22 3 400
MFVEJC4-DIN0213 250 730 405 355 660 12-26 3 450
MFVEJC4-DIN0214 300 850 460 410 705 12-26 4 560
MFVEJC4-DIN0215 350 980 520 470 850 16-26 4 640
MFVEJC4-DIN0216 400 1100 580 525 950 16-30 4 640
